R5000-Mmxb/35.300.2x200.2x14

R5000-Mmxb/35.300.2x200.2x14

Detailed specification pdf / 231.53 KB

Features

DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Mmxb/35.300.2x200.2x14, 3 GHz base station sector, net throughput up to 240 Mbps, integrated dual-pol sectorial antenna, 14 dBi, 90x8 deg
Net throughputup to 240 Mbps
Recommended distancesup to 20 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3400-3700 MHz
Channel width0.875, 1.25, 1.75, 2.5, 3.5, 5, 6, 7, 10, 12, 14, 15, 20, 28, 30, 40 MHz
Antenna14 dBi
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 x 371 x 90 mm, 3.4 kg

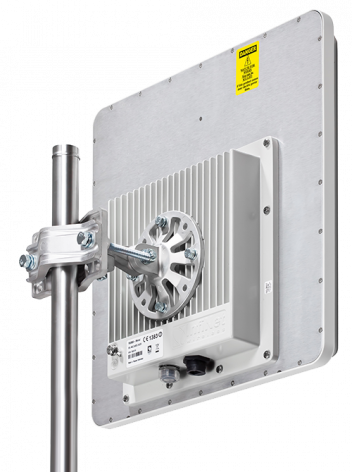

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor Unit
Power Supply
Power Cord
Connector
Standard RJ-45 connector
Shielded RJ-45 connector
RJ-45 Plug Cap
Mounting kit
Quick Start Guide
R5000-Mmxb/35.300.2x200.2x14
IDU-BS-G
IEC C13
INFINET-002-P
TPR-8P8C
8P8C-U-C5-SH
TPC-1G
MONT-KIT-85
-
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
